Diamond Systems, the company with 30 years of experience delivering compact, rugged, I/O-rich SBCs for critical embedded applications, is pleased to introduce our newest high-performance rugged SBC:
High performance COM-based SBC for rugged and long-life applications
COM express type 6 SBC and carrier board supports Basic and Compact size modules
SBC features Intel 11th generation Core i7 processor with up to 64GB RAM
2-board architecture enables more
functionality in the same footprint
as well a greater configuration
flexibility
Rugged design suitable for military and other vehicle applications as well as harsh environments
Thicker PCB
Latching connectors
Conduction cooling for improved heat dissipation
PCIe/104 expansion up to 4 x1 and 1 x16 (depending on the COM)
Dual Minicard sockets for I/O, M.2 M key socket for mass storage
Available with integrated precision data acquisition with autocalibration and programming support
-40 to +85C operation
Linux and Windows 10 64-bit OS support
A COM-based design brings critical benefits to embedded systems:
Bottom view showing COM and heat spreader
Supports the longest lifecycle with interchangeability of COMs to avoid obsolescence.
Enables performance scalability by swapping in a new COM at an increased performance level.
Gain quicker access to the latest processors without waiting for them to appear on traditional SBCs.

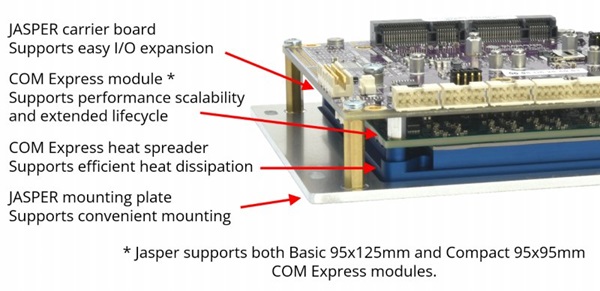

Jasper uses a novel
mounting plate that surrounds the COM heat spreader
and makes it easier to upgrade in the future. This
is just one of many innovative ideas from Diamond
that brings greater value to your products in the
eyes of your customers.
Jasper forms the heart of our Geode rugged mission computer designed for the toughest challenges. With high-speed connectors, Jasper can support HDMI and USB 3.1 connectivity. I/O expansion is made easy with the built-in expansion connector that enables installation of PCIe/104 and minicard I/O modules to add functionality without any mechanical redesign.
A rugged panel I/O board plugs directly onto the Jasper SBC to eliminate most cables, reduce the system size, and increase ruggedness.
GEODE - Rugged Mission Computer Based on Jasper SBC
Jasper with panel I/O board
Other COM-based SBCs from
Diamond Systems
GEMINI
Compact COM Express Type 6 SBC
Intel 11th generation Core i7 processor with up to 64GB RAM.
2-board architecture enables more functionality in the same footprint as well a greater configuration flexibility.
PCIe/104 expansion up to 4 x1 and 1 x16 (depending on the COM)
-40 to +85C operation
Linux and Windows 10 64-bit OS support
ZETA
Miniature COM Express Type 10 SBC
Only 84x55mm / 3.3x2.2”
Apollo lake E3950 processor with 8GB RAM and up to 128GB eMMC
Minicard and daughterboard I/O expansion
-40 to +85C operation
Linux and Windows 10 64-bit OS support
ATHENA IV
4th generation of best-selling PC104-expandable SBC
Based on COM Express Type 10
Enables lifecycle extension for PC104-based systems
Apollo lake E3950 processor with 8GB RAM and up to 128GB eMMC
Integrated precision data acquisition with autocalibration and programming support
4.2x4.5” / 106x114mm
-40 to +85C operation
Linux and Windows 10 64-bit OS support
