Drive Breaker Modules

SAS Module

6G SAS, 12G SAS , 24G SAS

Automate hot-plug, dual redundancy, and fault injection testing for SAS and SATA drives.

12G

24G

24G SAS Drive Breaker Module

SCA2-40

SCA2-40 HS Lite Drive Module

PCIE U.2 Modules

Perform full hot-swap and fault injection with PCIe SFF/U.2 drives.

PCIE U.3 Modules

Perform full hot-swap and physical layer fault injection with GEN4 PCIe SFF/U.3 drives.

GEN4 PCIE U.3 Module

PCIe U.3 Modules (Gen5)

Perform full hot-swap and physical layer fault injection with GEN5 U.3 drives, introducing our updated Gen5 PCIe U.3 Module.

PCIe U.3 Modules (Gen5)

EDSFF Modules

Perform full hot-swap and physical layer fault injection with EDSFF drives.

Gen4 EDSFF x8 Breaker - New Versions

Perform full hot-swap and fault injection with the latest Gen4 PCIe E1 and E3 drives.

Gen4 EDSFF x8 Breaker

Card Breaker Modules

Gen5 AIC to U.2 Breaker Module

Gen5 PCIe requires a rethink of test equipment configuration. Using this module, you can test a U.2 drive directly from an AIC slot without any additional adapters or cables

Gen5 MCIO to U.2 Breaker Module

Gen5 PCIe requires a rethink of test equipment configuration. The Gen5 MCIO to U.2 breaker module allows you to test a U.2 drive direct from an MCIO based Host card: SerialCables stock suitable Host Cards.

GEN3 AIC Modules

Hot-swap, lane configuration, fault injection, signal driving and power injection automation for PCIe GEN3 slots.

GEN4 AIC Modules

Fitting into a standard x16 PCIe slot, this PCIe module allows advanced, repeatable testing of PCIe devices.

GEN5 AIC Modules

This module performs hot-swap, lane configuration, fault injection, signal driving and power injection automation for PCIe Gen5 slots.

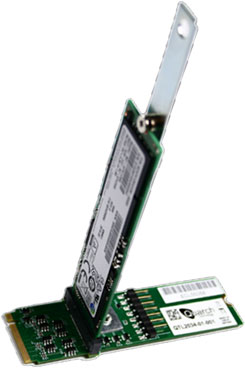

GEN3 M.2 Modules

Hot-swap, lane configuration, fault injection and signal driving for M.2 M-Key drives.

M.2 M-KEY Vertical Card Module

GEN4 M.2 Modules

Ideal for testing both consumer and enterprise-grade SSDs, this module allows hot-swap, lane configuration, fault injection and signal driving for Gen4 M.2 M-Key drives.

GEN4 M.2 M-Key Vertical Breaker Module

Note: New variant with added PLN/PLA control available

Cable Pull/Breaker Modules

SAS/SATA Modules

Perform automated cable hot-swap and fault injection on SAS and SATA Cables.

SFP/QSFP Cable Modules

Perform automated cable hot-swap and fault injection on SFP+/QSFP+ cables.

SFP28/QSFP28 Cable Modules

Perform automated cable hot-swap and fault injection on SFP28/QSFP28 cables.

RJ-45 Cable Modules

The Ethernet Cable Module is an automated solution for hot-swap testing and fault injection on RJ-45 cables. Automation provides easier, faster and more detailed testing. Consistent, repeatable results reduce time to market and improve reliability.

RJ-45 Cable Module

PCIe Cable Modules

Perform automated cable hot-swap and fault injection on SFF-8644 based PCIe cables.

OCULINK Cable Modules

Perform automated cable hot-swap and fault injection on OCulink cables.

OCULINK Cable Modules

USB Modules

This USB cable-pull module is an automated solution for hot-swap testing and fault injection on USB 3/Type-C cables. Automation provides easier, faster, and more detailed testing.

Canister Modules

Canister Modules

Perform automated hot-swap and fault injection on SBB 1.0 and 2.0 Canister Controllers.

SBB 2.0 Canister Module

Breakouts

Breakouts

Convert a U.2 SFF drive to fit in a U.3 host for testing.

Gen4 U.3 to U.2 Adapter

Automotive Multi-Protocol Breaker

Automotive Multi-Protocol Breaker

The Automotive Multi-Protocol Breaker is a versatile tool from Quarch, a standalone fault injection and monitoring device for testing critical communication links in the automotive industry and beyond.

Using simple pluggable terminal blocks, the breaker connects to a wiring loom. It can support many communication links from RS-232 to 1000Base T1 Ethernet.
