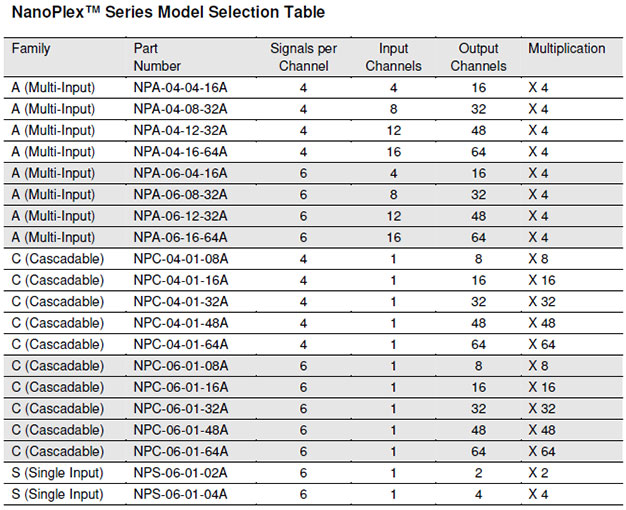

NanoPlex™ Series

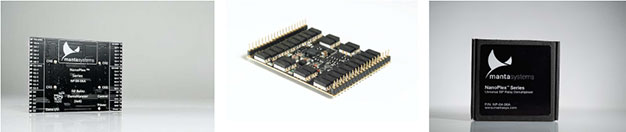

NPA-04-04-16A Universal Relay ISP-Channel Multiplier

General description

NanoPlex NPA-04-16-04A Universal Relay ISP-Channel Multiplier allows you to multiply four Channels of your ISP Programmer to 16-Channel with a galvanic isolation. The number of signals of any relays-switched-Channel is four. A dedicated GND is also provided for any single multiplied Channel. You can address one of the four Channels by using ISO-A1, ISO-A0 opto-isolated input control signals. Opto-isolated ISO-ENA is also present and allows you to disconnect all relays-switched Cannels from you target PCBA.

Typical application

PCBAs Production Lines.
ATE-controlled ISP Programming.
Hi-number of paneled PCBAs requiring ISP-Programming.

General characteristics

Part of Manta Systems’ acclaimed NanoPlex™ Series of Universal Relay ISP-Channel Multipliers.
Ultra-small size, only 95x121mm.
Designed for piggyback mounting, takes easly place in Test Fixtures.
NanoPlex is universal and compatible with all types of ISP-Programming tools.

Benefits

Very simple implementation of ISP programming to panels of PCBAs.
Multiply the number of ISP-Programmer Channels for device programming.
Provides galvanic isolation of ISP programmer to target boards.
Ready to use Relays Multipliers save days/weeks of your workmanship when creating home-made systems.
Higher reliability, no need to wait long substitution time in case of system fault.

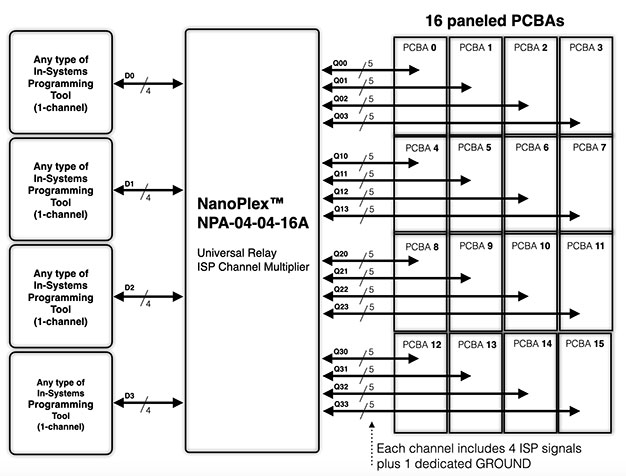

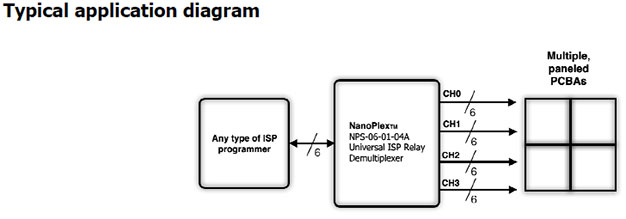

Typical Application Diagram

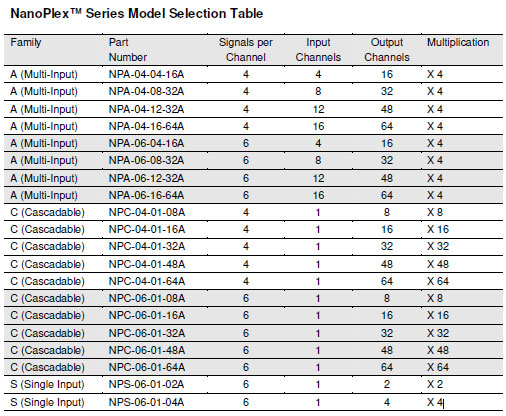

NanoPlex™ Series

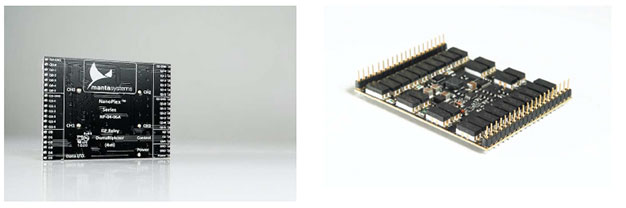

NPS-06-01-04A Universal Relay ISP-Channel Multiplier

General description

NPS-06-01-04A Universal ISP Relay Demultiplexer allows you to multiply the number of Channels of your ISP Programmer by a factor of four with a galvanic isolation. The number of signals of any relays-switched-Channel is six. A dedicated GND is also provided for any single multiplied Channel. You can address one of the four Channels by using A1, A0 input control signals. ENA is also present and allows you to un-connect all relays-switched Cannels from you target PCBA.

Typical application

PCBAs Production Lines.
ATE-controlled ISP Programming.
Hi-number of paneled PCBAs requiring ISP-Programming.

General characteristics

Part of Manta Systems’ acclaimed NanoPlex Series of Relay DeMultiplexers.
Ultra-small size, only 51.0 x 66.5 mm
Designed for piggyback mounting, takes easly place in your Test Fixtures.
NanoPlex is universal and compatible with all types of ISP-Programming tools.

Benefits

Very simple implementation of ISP programming to panels of PCBAs.
Multiply the number of your ISP-Programmer
Channels for sequential device programming.
Provides galvanic isolation of your ISP programmer to target boards.
Ready to use Relays Demultiplexers save days/weeks of your workmanship when creating home-made systems.
Higher reliability, no need to wait long time in case of system fault.
