Clicker Boards™
Ever-Growing
range of standardized add-on boards
WiFi, LoRa, BLE,GSM,
GPS, OLED, Speech, Recognition, Environmental Sensors,
Movement Sensors, Biosensors, LEDs, ADCs, Relays - you name
it, we got it. There are hundreds of Click Boards
available.

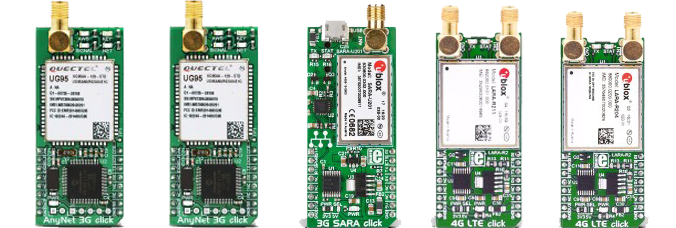

Wireless
Connectivity
3G Click (EU/AUS)
3G Click (EU/AUS)
3G SARA Click
4G LTE-E Click
4G LTE-NA Click
UART-5V
GPIO-3.3V
PWM-SPI
AN-12C
UG95 3G UMTS/HSPA
With UMTS/HSPA cellular modem – the u-blox U201, from
the SARA series.
It features the LARA-R211 multimode cellular module
from u-blox.
It features the LARA-R204 multimode cellular module
from u-blox.

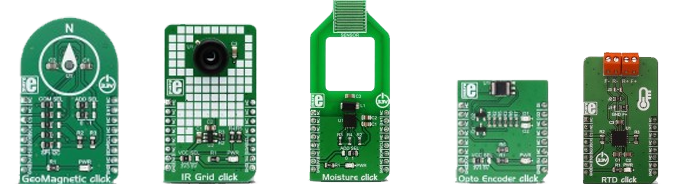

Sensors
GeoMagnetic Click
IR Grid Click
Moisture Click
Opto Encoder Click
RTD Click
UART-5V
GPIO-3.3V
PWM-SPI
AN-12C
Measures the geomagnetic field in three perpendicular
axes. The onboard sensor uses FlipCore from Bosch.
Equipped with the MLX90621BAD, a 16x4 IR array sensor,
from Melexis.
FDC2112 IC, a very precise 12bit capacitance to digital
converter, from Texas Instruments
Uses the TCUT1600X01, a tall dome dual channel
transmissive optical sensor from Vishay.
It is based on MAX31865 resistance to digital converter
optimized for RTDs.

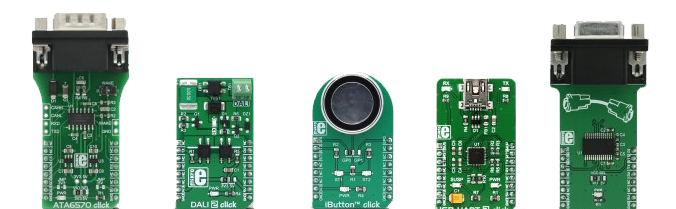

Interface
ATA6570 Click
DALI 2 Click
iButton™ Click
USB UART 3 Click
RS232 2 Click
UART-5V
GPIO-3.3V
PWM-SPI
AN-12C
Uses the ATA6570, a standalone high speed CAN
transceiver IC from Microchip.
It is used for interfacing with the DALI network, and
as a compliant with the DALI-2 physical layer
requirements
Comes with Maxim’s DS1990A, a serial number iButton™
device with a unique 64-bit serial number
The CP2102N, a highly integrated USB to UART interface,
from Silicon Labs.
The MAX3237E, a 3V to 5.5V multichannel RS232, 1 Mbit/s
line driver/receiver from Texas Instruments.

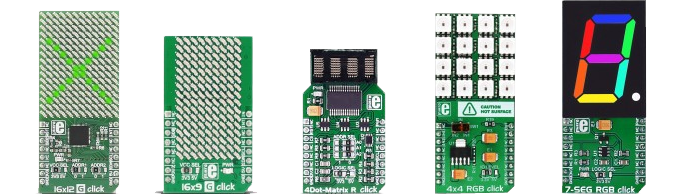

Display
16x12 G Click
16x9 G Click
4Dot-Matrix R Click
4X4 RGB Click
7-SEG RGB Click
UART-5V
GPIO-3.3V
PWM-SPI
AN-12C
Carries a 16x12 LED display and the IS31FL3733 matrix
driver with 1/12 cycle rate.
With a green 16x9 LED matrix and IS31FL3731 audio
modulated matrix LED driver.
Displays 4 char. of 5x7 dot size. With SLO2016 module
and MCP23017 I2C port expander.
With a matrix of 16 WS2812 RGB LEDs a MCP1826 low
dropout regulator.
Carries a full color single 7 segment digit display.
16,581,375 color combinations.

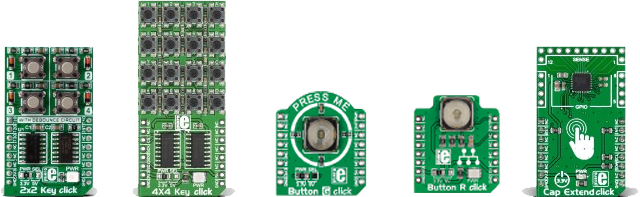

Human-Machine Interface
2x2 Key Click
4x4 Key Click
Button G Click
Button R Click
Cap Extend Click
UART-5V
GPIO-3.3V
PWM-SPI
AN-12C
The Click has a 4 button keypad. It allows multiple
key presses and has a debounce circuit.
Carries a 16 button keypad. Allows for multiple key
presses at the same time.
A single pushbutton - transparent, 6.8mm in diameter,
with a green LED backlight.
A single pushbutton - transparent, 6.8mm in diameter,
with a red LED backlight.
With SX8633, capacitive button touch controller. 12
pins for connecting capacitive inputs.

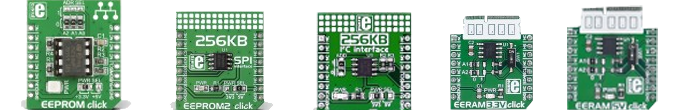

Storage
EEPROM Click
EEPROM 2 Click
EEPROM 3 Click
EERAM 3.3V Click
EERAM 5V Click
UART-5V
GPIO-3.3V
PWM-SPI
AN-12C
With 24C08WP - a highly reliable, high performance CMOS technology
serial 8K EEPROM.
With M95M02-DR DIP-8 socket EEPROM chip with 256 KB of
memory from ST Microelectronics.
With AT24CM02 DIP-8 socket EEPROM chip with 256 KB of
memory from Microchip.
With 47L16 EERAM, a 16Kbit SRAM with EEPROM Backup from
Microchip.
With 47C16 EERAM, a 16Kbit SRAM with EEPROM Back.

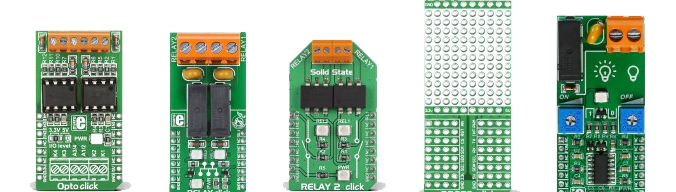

Miscellaneous
Opto Click
RELAY Click
Relay 2 Click
PROTO Click
FLICKER Click
UART-5V
GPIO-3.3V
PWM-SPI
AN-12C
It features two VO2630 dual channel, high speed optocoupler modules.
With two G6D1AASI-5DC power PCB relay modules. Controls
up to 5A, 250V AC/30V DC loads.
Carries two LCA717 single-pole, OptoMOS solid state
relays.
10x11 prototyping area and additional power pads for
creating custom electronics or Click boards™.
TI’s NA556 dual precision timer and Omron’s G6D-ASI
power PCB relay. ON/OFF 0.1-6 sec.
