  Logic Analyser

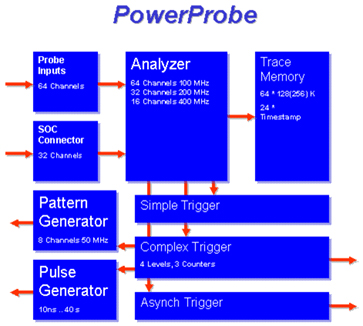

  Power Probe - Logic and Protocol Analyzer


The Timing/State Analyzer Module is special designed for microprocessor applications. It can work separately or in conjunction with all debugger modules. The high-speed transient recording allows very long record time when tracing peripheral lines in a microcontroller application.






  • Timing Analyzer up to 400 MHz
  • State Analyzer up to 100 MHz
  • 64 Input Channels
  • Transient Recording
  • Time Correlation with RISC Trace
  • Clock Qualifier for State Clock
  • Mixed State and Timing Mode
  • 4 State Clock Inputs
  • Optional FPGA Onchip Trace
  • Optional Pattern Generator
  • Protocol Support for CAN, USB, etc.





Learn More Sales Enquiry Scroll Top



  PowerIntegrator - Logic and Bus Analyzer


The PowerIntegrator module replaces much more expensive logic analyzer systems used for microprocessor system integration. High-speed logic analysis is now possible on every workplace integrated in the debugger software.






  • Timing Analyzer with 500 MHz on all Channels
  • State Analyzer up to 200 MHz DDR
  • 204 Input Channels
  • Transient Recording
  • Time Correlation with other Tracetools
  • Clock Qualifier for State Clock
  • Mixed State and Timing Mode
  • 4 Clock Inputs
  • MICTOR and Standard Probes (single ended)
  • MICTOR differential Probes
  • Analog Voltage and Current Probe
  • 3G/DigRF Protocol Support



Learn More Sales Enquiry Scroll Top
