Osbourne is a versatile carrier board
for the NVIDIA Jetson AGX Orin
high-performance GPU module. It provides
access to all I/O features of the Orin
module and includes numerous sockets for
I/O expansion. Osbourne has been designed
to be used in almost any application
ranging from commercial to industrial to
airborne to rugged military use.
Key
highlights of Osbourne include:
- Industry-standard camera adapter socket
for use with a wide range of CSI, GMSL,
and other cameras
|
|
| |
|
- 10Gb Ethernet + 1GB Ethernet ports
- Wide temperature operation � matching the range of
the Orin module
- Dual minicard sockets with PCIe and USB interfaces
- Dual M.2 sockets for flash memory (M key 2242/2280)
and network connectivity
(E key 2230)
- I/O concentrator connector enables use with standard
and custom I/O breakout
boards
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
STEVIE
|
|
|
|
|
| |
STEVIE
STEVIE is a compact, low-cost,
feature-packed carrier board solution for
the NVIDIA Jetson AGX Xavier computer
module. STEVIE measures 92 x 106mm (3.62 x
4.17"), just slightly larger than the AGX
Xavier module (87 x 100mm). This small
outline enables Stevie to provide the
maximum amount of I/O and support
full-size 2280 M.2 modules in the smallest
possible size.
The table below lists the I/O features of
the available Stevie configurations. In
all respects not listed, all models are
identical.
|
|
| |
|
|
|
| |
|
Model
|
STV-BB01
|
STV-BB02
|
STV-BB03
|
|
Description |
Full featured model
|
Single Ethernet model with all other features
|
Cost reduced model
|
|
Ethernet |
2 Gigabit Ethernet using dual stacked RJ-45
jack
|
1 Gigabit Ethernet using dual stacked RJ-45
jack; one port inoperative
|
1 Gigabit Ethernet using single RJ-45
jack
|
|
Serial ports |
4 RS-232/422/485 |
4 RS-232/422/485 |
2 RS-232/422/485
|
|
Data Acquisition |
Microcontroller with 6 ADC, 2 DAC, 13 GPIO |
Microcontroller with 6 ADC, 2 DAC, 13 GPIO |
I2C GPIO expander with 16 GPIO lines
|
|
USB |
2x USB 3.1, 2x USB 2.0 |
2x USB 3.1, 2x USB 2.0 |
2x USB 3.1, 2x USB 2.0 |
|
HDMI |
2 |
2 |
2 |
|
CAN |
2 |
2 |
2 |
|
Audio |
Yes |
Yes |
Yes |
|
M.2 socket |
NVMe x4 2280 |
NVMe x4 2280 |
NVMe x4 2280 |
|
Mini PCIe socket |
1 with PCIe and USB |
1 with PCIe and USB |
1 with PCIe and USB |
|
Micro SD |
1 Micro SD + UFS |
1 Micro SD + UFS |
1 Micro SD + UFS |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
JETBOX-STEVIE
|
|
|
|
|
| |
JETBOX-STEVIE

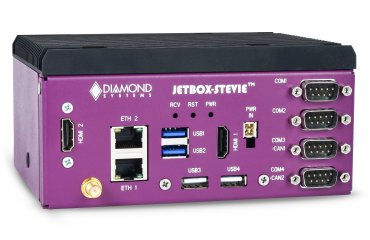

JETBOX-STEVIE is a compact Nvidia Jetson
AI computing platform ready to deploy. It
includes the high performance Jetson AGX
Xavier embedded computing module installed
on our STEVIE carrier
board with a Linux OS installed and
preconfigured to support all the I/O on
Stevie. Jetbox-Stevie offers the highest
|
|
| |
| |
| |
| |
performance Jetson computing platform in the
smallest available size.
Jetbox-Stevie features multiple expansion
sockets for additional I/O and storage capacity
to meet a wide range of application needs. Dual
SMA antenna cutouts support the installation of
WiFi and cellular modem modules for network
connectivity. The enclosure is DIN rail
mountable or can be used in a "table top"
scenario.
The front panel includes 4 DB9 connectors which
provide access to the 4 multi-protocol serial
ports on Stevie. Two ports can be converted to
CAN by replacing one of the cables with the
accessory CAN cable included with the system.
| |
|
|
|
| |
|
|
|
|
|
|
|
|
ELTON
|
|
|
|
|
| |
ELTON
With its NVIDIA Xavier computing power,
rugged design, and PCIe/104 expansion
capability, Elton offers the ideal
platform for implementing high performance
computing and AI applications in mobile
and harsh environments.
Elton utilizes the NVIDIA Jetson AGX
Xavier embedded computer module to deliver
unmatched performance for AI, machine
learning, image processing, and other
compute-intensive tasks. The Xavier module
delivers up to 30 watts.
|
|
| |
|
|
|
|
Xavier also
offers
scalable
performance
for
applications
requiring
lower
overall
power
consumption
of 10 or 15
watts. The
module runs
at 32 TOPs
on a
512-core
Volta GPU
with Tensor
Cores and
accelerators,
enabling
high-performance
AI-powered
autonomous
machines
like never
before. At
87 x 100mm
(3.4 x 3.9")
it is
slightly
bigger than
the other
Jetson
modules. |
|
|
|
|
| |
|
|
|
|
|
|
|
|
FLOYD SC
|
|
|
|
|
| |
FLOYD-SC
The FLOYD SC compact carrier board
converts the Nvidia Jetson Nano / TX2 NX /
Xavier NX modules into complete embedded
systems by providing interface circuitry,
I/O connectors for all module features,
camera interfaces, power supply, and
additional I/O in a solution measuring
only 4.3x3.3� / 110x85mm. A novel
expansion I/O connector enables connection
of standard and custom daughterboards with
additional I/O functionality to simplify
the development of customized Jetson
solutions.
|
|
| |
|
|
|
| |
Floyd SC features
up to 3 CSI
camera inputs, 2
Gigabit Ethernet
ports, 2 USB 2.0
ports, 1 USB 3.0
port, 1 RS-232
and 1 RS-232/485
serial port, 16
GPIO, and HDMI +
DP display
support. With the
NX module
installed a
second Ethernet
port and a CAN
port are
available. An M.2
M-Key NVME socket
supports both
2242 and 2280
size I/O and
flash storage
modules. Wide
voltage input
7-24V provides
adaptability to a
range of power
supplies.
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
JETBOX FLOYD-SC
|
|
|
|
|
| |
JETNOX FLOYD-SC
Jetbox-FloydSC provides a complete
deployable solution for AI at the edge
utilizing the Nvidia XN / TX2 NX / Nano
compact GPU modules. JetBox-Floyd SC
includes the Floyd SC carrier board and
the selected Jetson module with Linux OS
loaded, integrated into a compact steel +
aluminum enclosure ready for use.
|
|
| |
|
|
|
|
The integrated
heat sink cover
provides cooling
� no fan is
required. An
internal M.2
socket supports
up to 2TB
additional
storage beyond
the flash
included on the
Jetson module.
Shelf and DIN
rail mounting
are supported. A
12V AC adapter
is included with
the system.
With the NX
module
installed, one
CAN port can be
made available
with an internal
cable that
replaces one of
the serial ports
on the front
panel. |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
Floyd
|
|
| |
|
|
| |
Floyd
The FLOYD carrier board converts the
Nvidia Jetson Nano and Xavier NX modules
into complete embedded systems by
providing interface circuitry, I/O
connectors for all module features, camera
interfaces, power supply, and additional
I/O. Camera inputs include 2 PoE
|
|
| |
|
|
|
| |
|
Gigabit
Ethernet ports, 3 MIPI/CSI 2/4-lane
connectors, and 1 USB 3.0 port. MiniCard,
M.2, and Micro SD sockets support I/O
expansion and storage. FLOYD + NVIDIA
redefine possibility; the combination of
Nvidia�s performance/power efficiency and
Diamond�s I/O enables a new generation of
high-compute, low-cost solutions. |
| |
|
|
|
|
Carrier Board
Configurations
|
|
|
|
|
|
Floyd is available
in two
configurations:
FLD-BB01 offers the
complete suite of
I/O features, while
FLD-BB02 targets
lower-cost
applications
requiring less I/O.
The BB02 model also
omits the PCIe
switch needed for
the BB01 additional
I/O, thereby
enabling a full PCIe
x4 link to the M.2
socket for
potentially higher
flash memory
read/write speeds. |
|
|
|
|
| |
|
Feature
|
FLD-BB01
|
FLD-BB02
|
|
Gigabit
Ethernet |
2 |
1 |
|
PoE |
Both
ports |
No |
|
HDMI |
2 |
1 |
|
Camera
CSI
4-lane |
3 |
3 |
|
USB
3.0 |
1 |
1 |
|
USB
2.0 |
2 |
2 |
|
M.2
2280
socket |
PCIe
x1 |
PCIe
x4 |
|
Minicard
socket |
Full
size
PCIe |
No |
|
SD
card |
Yes |
Yes |
|
GPIO
3.3V |
8 |
8 |
|
Serial |
2x
RS-232/422/485 |
1x
RS-232
1x
RS-232/485 |
|
SCAN
2.0 |
1 (NX
only) |
No |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
JETBOX-FLOYD
|
|
|
|
|
| |
JETBOX-Floyd
JETBOX-FLOYD is a compact Nvidia Jetson
AI computing platform ready to deploy. It
includes the Jetson Nano or NX module
installed on our FLOYD carrier
board with a Linux OS installed and
preconfigured to support all the I/O on
Floyd.
|
|
| |
|
|
|
| |
Jetbox-Floyd is
available in four
standard baseline
configurations of
Jetson module and
baseboard features:
|
|
|
|
|
| |
|
Feature
|
JB-FLD-NAO-01
|
JB-FLD-NAO-02
|
JB-FLD-XNX-01
|
JB-FLD-XNX-02
|
|
Jetson module |
Nano |
Nano |
Xavier NX |
Xavier NX |
|
Gigabit Ethernet |
2 |
1 |
2 |
1 |
|
PoE |
Both ports |
No |
Both ports |
No |
|
HDMI |
2 |
1 |
2 |
1 |
|
Camera CSI 4-lane |
3 |
3 |
3 |
3 |
|
USB 3.0 |
1 |
1 |
1 |
1 |
|
USB 2.0 |
2 |
2 |
2 |
2 |
|
M.2 2280 socket |
PCIe x1 |
PCIe x4 |
PCIe x1 |
PCIe x4 |
|
Minicard socket |
Full size PCIe + USB |
No |
Full size PCIe + USB |
No |
|
SD card |
Yes |
Yes |
Yes |
Yes |
|
GPIO 3.3V |
8 |
8 |
8 |
8 |
|
Serial |
2x RS-232/422/485 |
1x RS-232 1x RS-232/485 |
2x RS-232/422/485 |
1x RS-232 1x RS-232/485 |
|
CAN 2.0 |
No |
No |
1 |
1 |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
Ziggy
|
|
|
|
|
| |
Ziggy
Ziggy offers a compact, low cost
platform for evaluation of Jetson computer
modules as well as implementation of a
marketable solution for AI and machine
learning applications. Ziggy provides
access to the most popular I/O features of
the Jetson modules, including camera,
Ethernet, USB, and serial. In addition it
features a unique data acquisition circuit
with analog input, analog output, and
digital I/O to enable Ziggy to interface
to the "real world" of analog and digital
sensors and controls.
|
|
| |
|
|
|
| |
|
|
|
|
