Industrial PCs with NVIDIA� Jetson� Modules
|
|
| |
|
Forecr provides industrial, high valued,
compact form factor box PCs for NVIDIA� Jetson� Nano�,
Xavier� NX and AGX Xavier�. Rich
industrial connectivity options such as
RS232, RS485, CAN, digital I/Os together
with high-speed interfaces like PCIe
(M.2), Gigabit Ethernet, USB 3 provides
complete solutions for edge AI and
industrial IOT applications. |
| |
| |
|
|
| |
|
|
| |

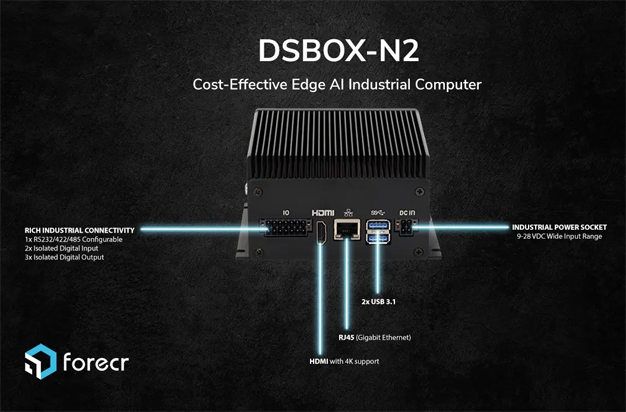

DSBOX-N2
Industrial Fanless Box PC with NVIDIA� Jetson� Nano�
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Technical Specifications
|
|
CPU |
Quad-core ARM� Cortex�-A57 processor |
|
GPU |
NNVIDIA Maxwell� GPU with 128 |
NVIDIA CUDA� Cores |
|
Memory |
4 GB 64-bit LPDDR4 |
|
Graphics Interfaces |
1x HDMI 2.0(max resolution 3840x2160) |
|
Interfaces |
1x Gigabit Ethernet |
|
2x USB 3.1 Type-A |
|
1x RS232/422/485 (software configurable) |
|
2 Digital Inputs / 3 Digital Outputs |
|
Wireless Communication |
Wi-Fi/Bluetooth/LTE/5G Connectivity by extension sockets |
|
Power Supply |
9-28 VDC |
|
Internal Extension Sockets |
1x M.2 Type-E Key |
|
1x M.2 Type-B Key |
|
Internal Mass Storage |
16 GB eMMC 5.1 Flash, 1x M.2 SSD Slot, 1x MicroSD,
1x M.2 Key
|
|
Ambient Conditions |
-25�C � +65�C |
|
Form Factor / Dimensions |
110 mm x 130 mm x 60 mm |
|
Operating Systems |
Ubuntu Linux 18.04 |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|

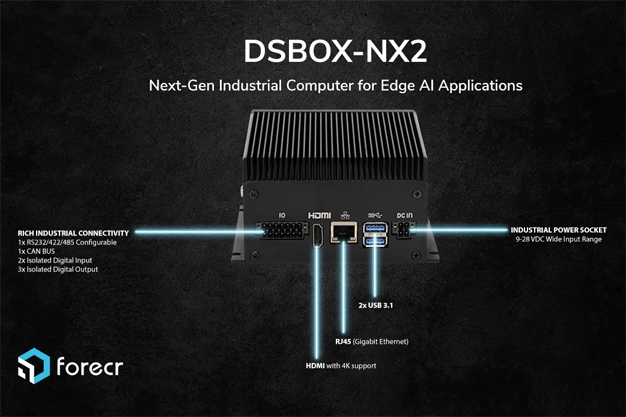

DSBOX-NX2
Industrial Fanless BOX PC with NVIDIA� Jetson�
Xavier� NX
|
|
|
| |
| |
|
|
| |
|
|
| |
|
|
| |
|
Technical Specifications
|
|
CPU |
Six-core NVIDIA Carmel ARM� v8.2 64-bit |
|
GPU |
NVIDIA Volta� GPU with 48 Tensor Cores |
|
Memory |
8 GB 128-bit LPDDR4x |
|
Graphics Interfaces |
1xHDMI 2.0(max resolution 3840x2160) |
|
Interfaces |
1x Gigabit Ethernet |
|
2x USB 3.1 Type-A |
|
1x CAN Bus |
|
1x RS232/422/485 (software configurable) |
|
2 Digital Input / 3 Digital Output |
|
Wireless Communication |
WiFi/Bluetooth/LTE/5G Connectivity by extension sockets |
|
Power Supply |
9-28 VDC |
|
Internal Extension Sockets |
1x M.2 Type-E Key, 1x M.2 Type-B Key |
|
Internal Mass Storage |
16 GB eMMC 5.1 Flash, 1x MicroSD 1x M.2 Key-M SSD Slot |
Ambient Conditions
|
-25�C � +65�C |
Form Factor / Dimensions
|
110 mm x 130 mm x 60 mm |
Operating Systems
|
Ubuntu Linux 18.04 |
|
|
| |
|
| |
|
|
| |
|
|
|
| |

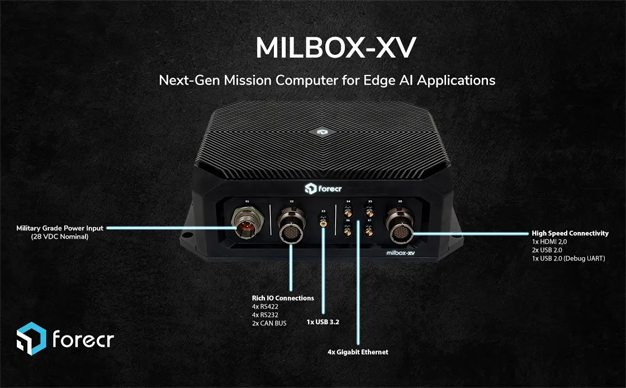

MILBOX-XV
Rugged Military Grade Computer with
NVIDIA� Jetson� AGX Xavier� Processor
|
|
|
| |
| |
|
|
| |
|
|
| |
|
|
| |
|
Technical Specifications
|
|
CPU |
Eight-core NVIDIA Carmel ARM� v8.2 64-bit |
|
GPU |
NVIDIA VoltaTM 512 Core GPU with 64 Tensor Cores |
|
Memory |
32 GB 256-bit LPDDR4x |
|
Graphics Interfaces |
1xHDMI |
|
Interfaces |
4x Gigabit Ethernet |
|
1x USB 3.1 |
|
2x USB 2.0 |
|
1x USB 2.0 (Serial Console) |
|
2x CAN Bus |
|
4x RS232 |
|
4x RS422 |
|
Power Supply |
18-32 VDC (28 VDC Nominal)
|
|
Internal Mass Storage |
16 GB eMMC 5.1 Flash, 1x M.2 SSD Slot |
|
Ambient Conditions |
-40�C ... +70�C (with AGX Xavier Industrial Module) |
|
Dimensions/ Weight |
210 mm x 296 mm x 92 mm / 4750 grams |
|
Standards |
MIL-STD-1275/704, MIL-STD-810, |
|
MIL-STD-461, IP67 |
|
Operating Systems |
Ubuntu Linux 18.04 |
|
|
| |
|
|
| |
|
|
| |
| |
| |
| |
| |
CUSTOM DESIGN SERVICES
Forecr offer customized carrier boards and systems
with specific interface requirements and budget
constraints for our clients. In a customization
process, we accomplish each of design, prototyping
and production stages smoothly. Offering long term
availability, cost-efficiency and low NRE prices
together with rich interface options (USB3, PCIe,
10G, SATA, HDMI, DP, CAN, RS-485, MIL-STD-1553,
ARINC-429, etc.) are the key selection factors in
our custom-made designs. Beside industrial
environments, we have the experience to design for
critical environments such as military and railway
as well. We design our rugged embedded computers
based on required environmental standards to operate
under high levels of shock & vibration and extended
temperature range.
|
| |
| |
|
|
| |
|
|
| |
|
|
|
|
| |
|
|
|
|
|
