About Forecr |
|
|
|
|
| |
Forecr.io is a brand of Mist Elektronik for NVIDIA Jetson based Industrial BOX
PCs and industrial carrier boards.
Mist Elektronik was founded in 2013 and has completed a number of projects in
defense, security,
medical, industrial automation and railway transportation sectors. Mist
Elektronik has been working
with NVIDIA Jetson processor family since 2016 and deployed thousands of modules
with custom designed
carrier boards and system level designs. By 2020, carrier boards and industrial
BOX PCs are branded
under ForeCR name, became a product family and take place in the market.
|
|
| |
| |
|
|
| |
|
|
|
Industrial Carrier Boards for NVIDIA� Jetson�
Modules
|
|
|
|
|
| |
|
Forecr provides compact, industrial,
high valued and ready to deploy carrier
boards for NVIDIA� Jetson� Nano�,
Xavier� NX, and AGX Xavier�. The
experience on industrial connectivity
such as RS232, RS485, CAN, and unique
designs with high-speed interfaces like
PCIe, 10G, USB 3 set us apart from other
companies in the sector. |
|
| |
| |
|
|
| |

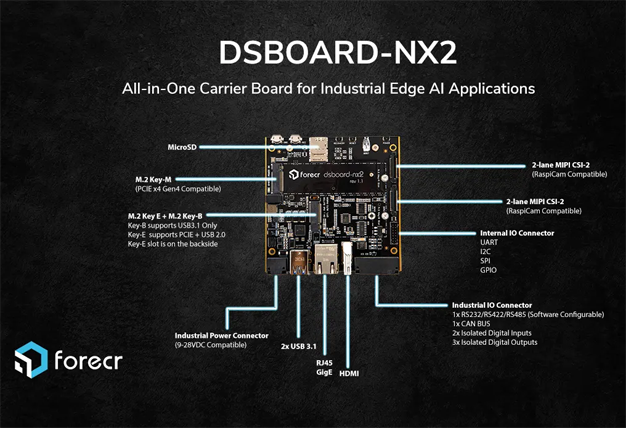

DSBOARD-NX2
Industrial carrier boards for NVIDIA� Jetson� Nano�,
Xavier� NX
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Technical Specifications
|
|
Supported Modules |
NVIDIA Jetson Nano |
NVIDIA Jetson Xavier NX |
|
NVIDIA Jetson TX2 NX |
|
Memory |
4 GB 64-bit LPDDR4 |
|
8 GB 128-bit LPDDR4x |
|
Graphics Interfaces |
|
1x HDMI 2.0 (max resolution 3840x2160) |
|
Interfaces |
1x Gigabit Ethernet |
|
2x USB 3.1 Type-A |
|
1x CAN Bus (No available in Jetson Nano) |
|
1x RS232/422/485 (software configurable) |
|
2x micro-USB 2.0 (Debug/Recovery) |
Isolated Digital IO (3 OUT / 2 IN) |
|
Wireless Communication |
Wi-Fi/Bluetooth/LTE/5G Connectivity by extension sockets |
|
Power Supply |
9-28 VDC |
|
Internal Extension Sockets |
1x M.2 Key E |
|
1x M.2 Key B (USB 3.1 only) |
|
1x M.2 Key M (PCIe Gen4 x4) |
|
Internal Mass Storage |
16 GB eMMC 5.1 Flash
|
|
1x MicroSD
|
|
Ambient Conditions |
-25�C � +85�C |
|
Form Factor / Dimensions |
100 mm x 100 mm |
|
Operating Systems |
Ubuntu Linux 18.04 |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |

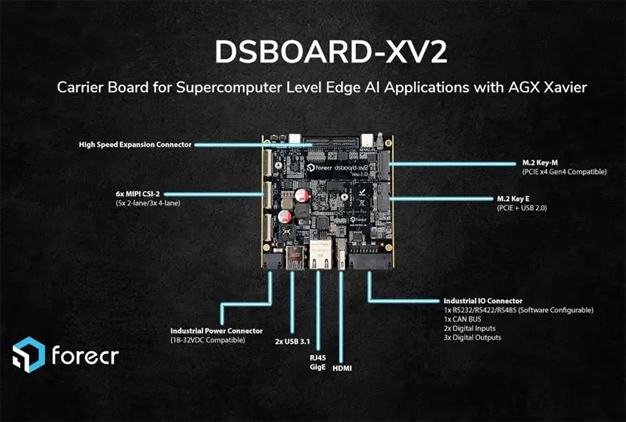

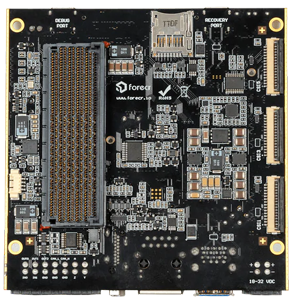

DSBOARD-XV2
Industrial carrier boards for NVIDIA� Jetson� AGX
Xavier�.
|
|
| |
|
|
| |
| |
| |
|
|
| |
|
|
| |
|
|
| |
|
Technical Specifications
|
|
Supported Modules |
NVIDIA Jetson AGX Xavier |
|
Memory |
32 GB 256-bit LPDDR4x |
|
Graphic Interfaces |
1x HDMI 2.0 (max resolution 3840x2160) |
|
Interfaces |
1x Gigabit Ethernet |
|
3x USB 3.1 |
|
1x CAN Bus |
|
1x RS232/422/485 |
|
2xDigital In/3x Digital Out |
|
1x USB 2.0 (Debug UART) |
|
Wireless Communication |
Optional M.2 Key-E Cards |
|
Power Supply |
18-32 VDC |
|
Internal Extension Sockets |
1x M.2 Key M (PCIe Gen4 x4) |
|
Internal Mass Storage |
I32 GB eMMC 5.1 Flash |
|
1x MicroSD Card |
Ambient Conditions
|
-40�C � +85�C |
Form Factor / Dimensions
|
100 mm x 100 mm |
Operating Systems
|
Ubuntu Linux 18.04 |
|
|
| |
|
| |
|
|
| |
|
|
| |
|
|
| |

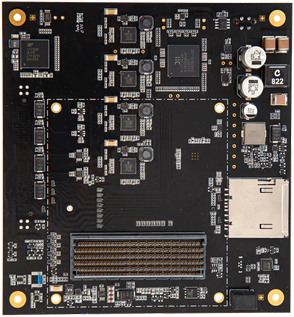

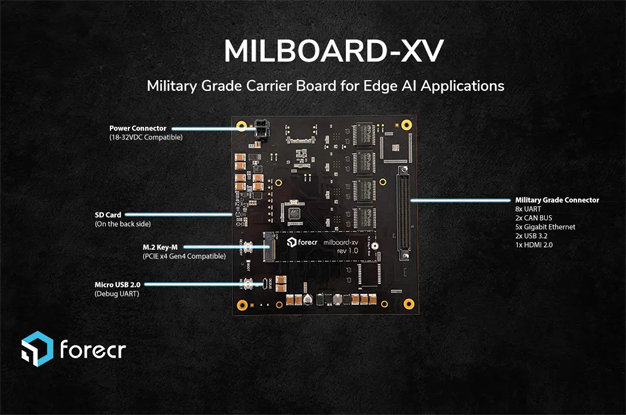

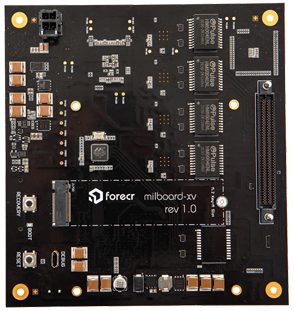

MILBOARD-XV
Military Grade Carrier Board for NVIDIA� Jetson� AGX Xavier� & AGX
Xavier� Industrial
Modules.
|
|
|
| |
| |
|
|
| |
|
|
| |
|
|
| |
|
Technical Specifications
|
|
Supported Modules |
NVIDIA Jetson AGX Xavier |
|
Memory |
32 GB 256-bit LPDDR4x |
|
Graphic Interfaces |
1x HDMI 2.0 (max resolution 3840x2160) |
|
Interfaces |
5x Gigabit Ethernet |
|
2x USB 3.1 |
|
2x CAN Bus |
|
8x UART |
|
1x USB 2.0 (Debug UART) |
|
Wireless Communication |
- |
|
Power Supply |
18-32 VDC |
|
Internal Extension Sockets |
1x M.2 Key M (PCIe Gen4 x4) |
|
Internal Mass Storage |
32 GB eMMC 5.1 Flash |
|
1x SD Card |
|
Ambient Conditions |
-40�C � +85�C |
|
Form Factor / Dimensions |
150 mm x 140 mm |
|
Operating Systems |
Ubuntu Linux 18.04 |
|
|
| |
|
|
| |
|
|
| |
|
|
