Q.Series X
Q.series X is Gantner's cutting-edge DAQ technology used globally for testing and
monitoring applications in the mobility, aerospace, civil engineering, oil & gas,
and renewable energy sectors.
- Engineered Flexibility
- Standalone Operation
- Long-term Reliable DAQ
- Open Connectivity & APIs
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
| |
Capabilities of Q.Series X
|
|
| |
|
|
| |
The capabilities of the Q.series X extend well beyond conventional DAQ; features
like intelligent data filtering, data reduction algorithms, IIoT edge computing,
and real-time control for automation make the Q.series X the most versatile data
acquisition system available on the market.
The Q.series X controller, Q.station X, connects up to 64 mixed-signal measurement
modules with up to 8th order filtering or up to 16 analog input channels sampling
at 100 kHz and up to 32 virtual variables (e.g., RMS, Avg, Alarm, etc.). This
large capacity per Q.series X DAQ system is possible due to its 5 UARTS (4 for
data transfer, 1 for configuration) with a data transfer rate of 48 Mbaud per
UART. The 5th UART is to enable reconfiguration during DAQ operation.

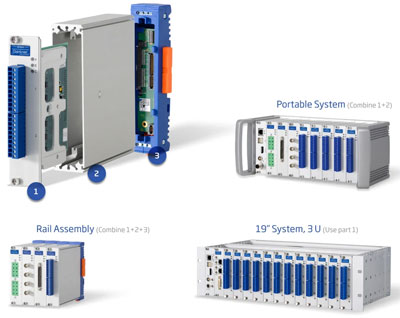

But the flexibility does not stop there: Q.series X I/O modules feature front
plates with fully customizable sensor connectors, increasing efficiency and safety
for all applications. Q.series X is also intelligently designed to have
interchangeable enclosures: DIN rail, Rugged & Portable, 1U/3U 19" racks, and be
space-saving, where single wide controllers and modules are only 35mm wide on DIN
rail.
|
|
Best if you
need:
- Powerful signal conditioning
- Higher ADC rates
- Higher data rates
- Customized connectors
- Reconfiguration during operation
|
|
|
|
|
|
|
|
|
|
|
|
| |
Features
|
|
| |
|
|
| |
| Q.series X DAQ products take the performance and long-term
reliability of Gantner's flagship DAQ series for over 10 years to the neXt level.
|
|
|
| |
|
|
| |
|
Feature
|
Q.Series Xtended Edition
|
Q.Series Classic Edition
|
| Sampling rate, e.g., of Multi Purpose Module |
20kHz / 100kHz |
10kHz / 100kHz |
| Amount of Input Channels at 100kHz |
16 |
8 |
| Baud rate per UART |
48Mbaud |
24Mbaud |
| No. of UARTs |
5 (1 for configuration) |
4 |
| Re-configuration during operation |
yes |
|
| Connector on Module Front |
Customization possible |
10-pole Standard |
| Enclosue |
DIN rail, Portable, 19" Rack |
DIN rail |
| Width on DIN rail of Controller Q.station |
35mm |
175mm |
| Interface Upgrade from UART to EtherCAT |
yes |
|
| A141 Charge Amplifier |
yes |
|
| A108 with excitation for MEMS sensors |
yes |
|
| Q.Boost A101 MHz Module |
yes |
|
| F108 Optical Gage Amplifier |
yes |
|
| F100 Optical UART Extension |
yes |
|
| Highest Order of Filter on Module |
8th |
4th |
| Time synchronization with Ethernet (PTP) |
yes |
|
| Number of virtual variables (rms, avg, alarm, etc.) |
up to 32 |
16 |
|
|
|
|
|
|
|
|
|
|
|
| |
Suitable for
|
|
|
|
|
| |
| The versatility of Gantner DAQ products makes them ideal for:
|
|
|
|
|
|
| |
Mobility
|
Aerospace
|
Energy
|
Civil
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
