Time Aware Network Interface cards
|
|
|
|
|
| |
|
|
| |
HSR/PRP/GigE IEEE1588v2
The SMARTzynq PCIe HSR/PRP/PTP is
a networking card compliant with HSR and PRP v3
Redundant Ethernet protocols (IEC 62439 clause 5 and
4). These protocols ensure high availability for the
networking on critical infrastructures offering
zero-delay recovering time and no frame lost in case of
a network failure. The board attaches the Industrial PC
to the redundant network. |
|
|
| |
| |
|
|
| |
|
|
|
|
|
|
|
| |
| |

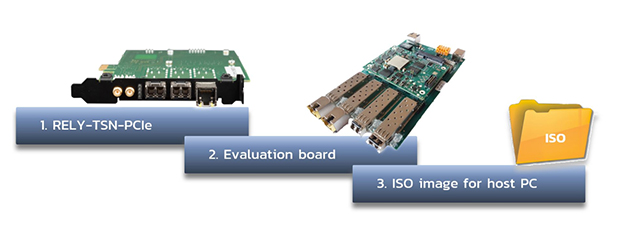

RELY-TSN-KIT- Time-Sensitive Networking
Evaluation Kit
RELYUM has launched the first TSN kit based on end
products that allows to evaluate:
- The importance of a common sense of time based on
IEEE 1588 AS synchronization.
- The deterministic delivery of real-time traffic
thanks to the Time Aware Shaper.
- The benefit of bandwidth distribution and
reservation between traffic classes through a Credit
Based Shaper
|
|
|
| |
| |
| |
| |
| |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
RELY-LP-PCIe-Time-aware Redbox-DAN Low Profile PCIe NIC
RELY-LP-PCIe is a low profile PCIe pluggable board
that comprises in the same device hardware and software
resources to implement specialized networking,
synchronization and security oriented services.
RELY-PCIe-LP can be used as a multi-media PCIe
Redbox-DAN, operating as an HSR/PRP node of a
high-availability network and connecting an Ethernet
network segment with an HSR/PRP network. |
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
| |
RELY-SYNC-HSR/PRP-PCIe - Time-aware Redbox-DAN PCIe NIC
RELY-SYNC-HSR/PRP-PCIe can be used in
different applications as a multi-media PCIe Redbox-DAN,
operating as an HSR/PRP node of a high-availability
network and connecting an Ethernet network segment with
an HSR/PRP network. It is a smart pluggable board that
comprises in the same device hardware and software
resources to implement specialized networking,
synchronization and security oriented services. |
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
RELY-LP-PCIe-Time-aware Redbox-DAN Low Profile PCIe NIC
RELY-LP-PCIe is a low profile PCIe pluggable board
that comprises in the same device hardware and software
resources to implement specialized networking,
synchronization and security oriented services. RELY-PCIe-LP
can be used as a multi-media PCIe Redbox-DAN, operating
as an HSR/PRP node of a high-availability network and
connecting an Ethernet network segment with an HSR/PRP
network. |
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
| |
RELY-TSN-PCIe-TSN Bridge PCIe NIC
RELY-TSN-PCIe is the first out-of-the-box
solution for TSN that allows seamless implementation of
deterministic Ethernet networks and abstract user
equipment and applications from these technical
complexities. This device combines in a single
equipment PCIe TSN Endpoint and TSN Bridge
functionalities and provides 3 external fiber or copper
tri-speed Ethernet ports. |
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
RELY-SV-PCIe-Sampled Value Subscriber DAN PCIe NIC
RELY-SV-PCIe card is a smart pluggable board that
comprises in the same device hardware and software
resources to implement intensive processing,
specialized networking, synchronization and security
oriented services for Smart Grids based on IEC 61850
standard. |
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
| |
RELY-SYNC-PCIe-Time-aware Switch PCIe NIC
RELY-SYNC-PCIe can be used as
a multi-media PCIe Switch, providing 3+1 (PCIe) Gigabit
Ethernet ports. RELY-SYNC-PCIe is a smart pluggable
board that comprises in the same device hardware and
software resources to implement specialized networking,
synchronization and security oriented services. |
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
