PowerTrace
|
|
| |
PowerTrace II LITE
|
|
| |
|
|
| |
|
|
Cost effective parallel trace extension:
- Memory Size: 1 GByte
- Application: Parallel trace
- Maximum Bandwidth: 10.8 Gbit/s
- Streaming Performance1 (Peak / Average): 1 350 / 100 MByte/s
- Parallel Trace2: Up to 36 lines 600+ Mbit/s per line @ 9 lines, 450 Mbit/s per line @ 17 lines, 225 Mbit/s per line @ 36 lines
- Serial Trace: Up to 4 lanes3,4 6.25 Gbit/s per lane @2 lanes, 4.50 Gbit/s per lane @3 lanes, 3.38 Gbit/s per lane @ 4 lanes
- Option for logic analyzer and energy profiling: Not Available
- Required debug module: PowerDebug X506
|
|
|
| |
|
|
| |
Configuration Overview
|
|
| |
|
|
| |
PowerTrace II LITE is an extension
to the debug module
TRACE32 PowerDebug PRO
and offers a trace memory of 512 MByte, which can record
trace data conveyed off-chip via a parallel or serial
trace port.
|
|
| |
|
|
| |
|
|
| |
|
|
| |
Data Rates TRACE32 AutoFocus II Preprocessor
|
|
| |
|
|
| |
- Parallel trace ports 600+ MBit/s per pin for a port
with up to 8-bit (+TCTL) in DDR mode
- Parallel trace ports up to 450 MBit/s per pin for a
port with 16-bit (+TCTL) in DDR mode
- Parallel trace ports up to 225 MBit/s per pin for a
port with 32-bit (+TCTL)
|
|
|
| |
|
|
| |
Data Rates TRACE32 AutoFocus II Preprocessor
|
|
| |
|
|
| |
- Serial trace ports up to 4 lanes, each lane max. 6.5
Gbit/s, but only up to 10.8 GBit/s in total
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
PowerTrace III
|
|
| |
|
|
| |
|
|
High-performance parallel trace extension:
- Memory Size: 4 GByte or 8 GByte
- Application: High-performance parallel tracing
- Maximum Bandwidth: 19.2 Gbit/s
- Streaming Performance1 (Peak / Average): 2 400 / 400 MByte/s
- Parallel Trace1: Up to 36 lines 600+ Mbit/s per line @ 17 lines, 350 Mbit/s per line @ 36 lines
- Serial Trace: Up to 4 lanes2,3 6.25 Gbit/s per lane @3 lanes, 5.00 Gbit/s per lane @4 lanes
- Option for logic analyzer and energy profiling: Via Mixed-Signal Probe
- Required debug module: PowerDebug X506
|
|
|
| |
|
|
| |

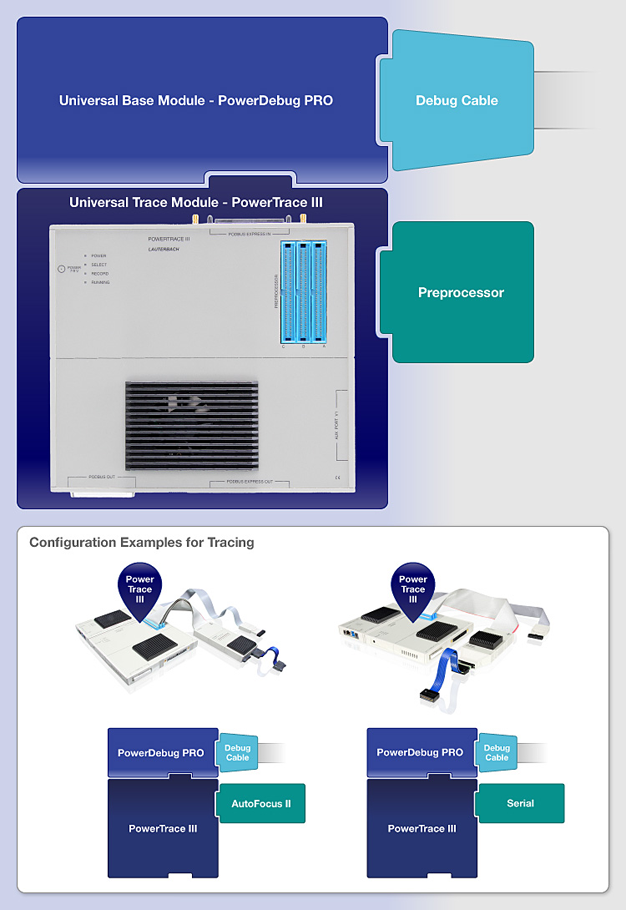

Configuration Overview
|
|
| |
|
|
| |
PowerTrace III is an extension to
the debug module
TRACE32 PowerDebug PRO
and offers a trace memory of up to 8 GigaByte, which can
record trace data conveyed off-chip via a parallel or
serial trace port.
|
|
| |
|
|
| |
|
|
| |
Data Rates TRACE32 AutoFocus II Preprocessor
|
|
| |
|
|
| |
- Parallel trace ports 600+ MBit/s per pin for a port
with up to 8-bit (+TCTL) in DDR mode
- Parallel trace ports up to 600+ MBit/s per pin for a
port with up to 16-bit (+TCTL) in DDR mode; without
"continuous mode" also for 18-bit ports
- Parallel trace ports up to 350 MBit/s per pin for a
port with up to 32-bit (+TCTL)
|
|
|
| |
|
|
| |
Data Rate TRACE32 Serial Preprocessor
|
|
| |
|
|
| |
- Serial trace ports up to 4 lanes, each lane max. 6.5
Gbit/s, but only up to 19.2 GBit/s in total
|
|
|
| |
|
|
| |

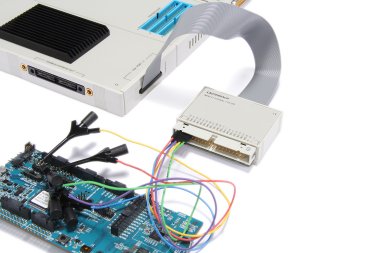

Included Mixed-Signal Probe
|
|
| |
|
The scope
of delivery for PowerTrace III also includes the
TRACE32 Mixed Signal Probe, which allows
digital and analog signals to be recorded and
correlated directly with the trace recording
performed by a TRACE32 AutoFocus II or Serial
Preprocessor. The correlation is based on a
common time stamp.
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |

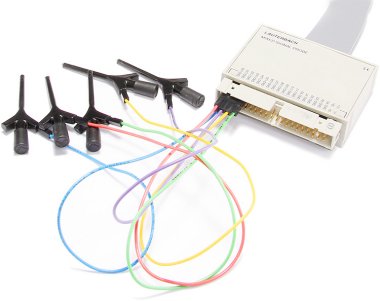

TRACE32 Mixed Signal Probe
|
|
| |
|
|
| |
- Record digital/analog signals and correlate them
with program flow
- Digital signals: 12 channels, 0V - 5V, 200 MSamples/s
per channel, threshold 0.1V - 2.5V
- Analog signals: 6 single-ended voltage channels,
-12V - +12V, 13-bit resolution, 2 current sense
channels, up to 240mV differential shunt resistor
voltage, 1 MSample/s conversion rate.
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
PowerTrace Serial 2
|
|
| |
Highlights
|
|
| |
|
|
| |
|
|
- 4 GByte or 8 GByte memory
- High-performance serial tracing application
- Maximum Bandwidth 80 Gbit/s
- 10 000 / 400 MByte/s Streaming Performance (Peak / Average)
- Parallel Trace: NA
- Serial Trace via Aurora/HSSTP: 12.5 Gbit/s per lane2 @ 8 lanes, 22.5 Gbit/s per lane2 @ 4 lanes1
- Serial Trace via PCIe: PCIe Gen 2/3 x8, PCIe Gen 4 x47
|
|
|
| |
|
|
| |

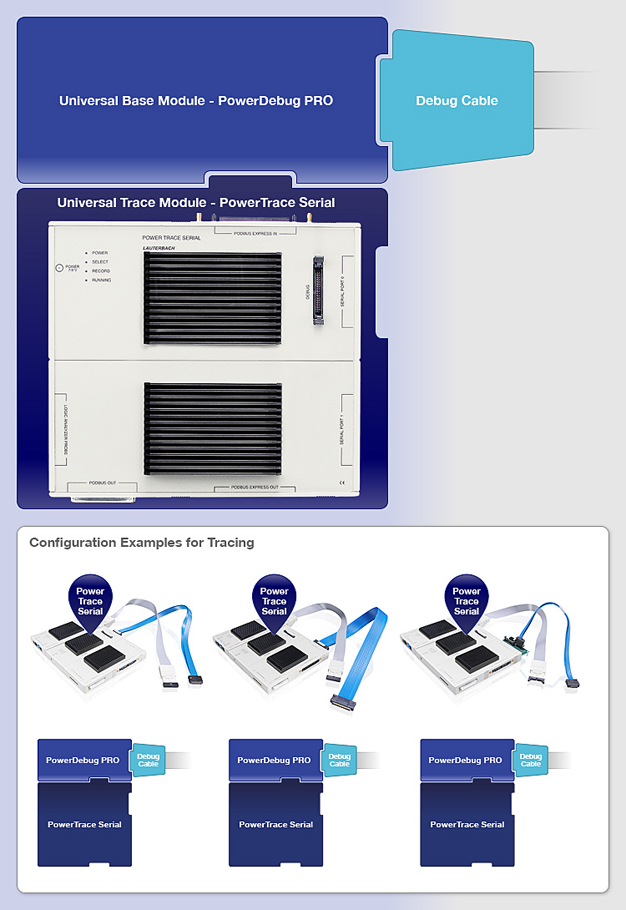

Configuration Overview
|
|
| |
|
|
| |
PowerTrace Serial is an extension
to the debug module
TRACE32 PowerDebug PRO and offers a trace memory of
up to 4 GByte, which can record trace data conveyed
off-chip via a serial trace port.
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
The characteristics of PowerTrace Serial at a
glance:
- 4 GByte trace memory
- Maximum bandwidth of 100 GBit/s
- Support for TRACE32 Streaming up to 400 MByte/s
- TRACE32 Standard Probe included
(17 digital channels)
- More ...
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
