Others

Intel Processor Trace
RISC-V Trace
Tessent Embedded Analytics Trace Solution for RISC-V

System Trace
TriCore AGBT with Serial Preprocessor

Intel Processor Trace

Parallel trace port with up to 200 MBit/s per pin
Configurable trace port width (4-, 8-, 12- or 16-bit)
Standardized MIPI60 connector to target
Includes AutoFocus Self Calibration technology
Multicore tracing
Up to 8 GByte trace memory
Standard trace filters and triggers
Comprehensive profiling
Trace-based code coverage

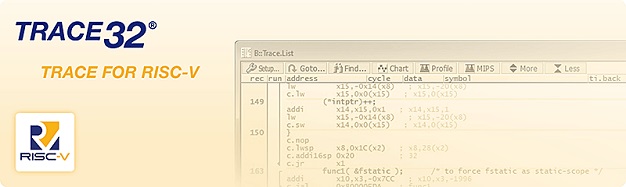

RISC-V Trace

Solutions

Proprietary SiFive Nexus Trace Solution for RISC-V

SiFive cores only
Based on Nexus message protocol
Instruction trace
Trace protocol may include timestamps
Multicore tracing
Support for pure SiFive trace infrastructure or SiFive trace IP integrated into an Arm CoreSight trace infrastructure

Tessent Embedded Analytics Trace Solution for RISC-V

Compliant to Efficient Trace for RISC-V Version 1
Instruction trace
Data trace, if supported by the implemented trace IP
Timestamps, if supported by the implemented trace IP
Multicore tracing
Trace filters allow to reduce the generation of trace messages
Support for Tessent Embedded Analytics only trace infrastructure and Tessent Embedded Analytics trace IP integrated into an Arm CoreSight trace infrastructure

System Trace

Support of onchip-tracing (Embedded Trace Buffer), no additional trace hardware required
CombiProbe and PowerTrace II / III to be used for trace data directed to external trace port
High-level decoding of hard- and software instrumentation messages

System traces refer to trace modules which output data in compliance with the MIPI System Trace Protocol version 1 (STPv1) or version 2 (STPv2). It is used to transport hardware or software instrumentation messages.

Currently Lauterbach supports two implementations of system trace modules: The System Trace MacroCell as CoreSight component by ARM and the System Trace Module by Texas Instruments.

TriCore AGBT with Serial Preprocessor

The AGBT high-speed serial trace supports core- and bus trace for TriCore AURIX devices. The trace can be used for error diagnosis in real-time critical environments as well as for performance and code coverage analysis.

Tracing of TriCore and GTM is supported.

Robust trace recording using Aurora
Up to 6.25 GBit/s per lane
Up to 4 lanes
Up to 8 GByte trace memory
Streaming to host storage
Delay counter
Fast search and download
Code Coverage
Performance Analysis
