ARM/Cortex Trace (parallel)
|
|
| |
|
|
|
- Up to 8 GByte trace buffer
- Target voltage 1.2 .. 3.3 V
- 5 ns time stamp
- Program and data trace
- Performance analysis
- Function and task run-time measurement
- Code coverage
- Support for Emedded Trace Macrocell (ETM),
- Program Trace Macrocell (PTM)
- Support for Embedded Trace Buffer (ETB),
- Trace Memory Controller (TMC), Trace Port Interface
Unit (TPIU)
- Support for multiple trace sources in a single
stream (CoreSight trace)
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
ARM/Cortex ETM (serial)
|
|
| |
- Support of High-Speed Serial Trace Port (ETM-HSSTP,
ARM specified)
- Compatible to Xilinx Aurora protocol
- Support of up to four differential lanes
- Maximum 6,25Gbit/s lane speed
- Up to 8 GByte trace buffer size, sufficient for up
to 48 Giga CPU cycles
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
MPC55xx/MPC56xx NEXUS Debugger and Trace
|
|
| |
|
|
- Support for NEXUS standard class 1 to 3+
- Easy high-level and assembler debugging
- Program flow and Data trace
- Watchpoint and Ownership tracing
- Up to 4 GByte trace memory
- Trigger programming
- Interface to all hosts
- USB and ETHERNET interface included
- Support for VLE (Variable Length Encoding)
- eTPU, GTM and SPT debuggers included
- eTPU program and data trace supported
- Data trace for additional trace clients (e.g. DMA,
FlexRay)
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |

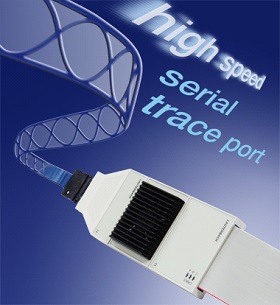

MPC57xx NEXUS High Speed Serial Trace Port
|
|
| |
- Aurora NEXUS high-speed serial trace
- Program flow via Branch Trace Messages (BTM)
- Data Trace Messaging supported (DTM)
- Information on current task via OwnershipTrace
Messages (OTM)
- Supports onchip peripheral block tracing
- Supports timestamps generated by NEXUS clients as
well as TRACE32 generated timestamps
- Multicore tracing
- Comprehensive program profiling
- Target-OS aware profiling
- Code coverage
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
QorIQ PowerPC NEXUS Aurora Trace Port
|
|
| |
|
|
|
- High-speed serial trace
- Program flow via Branch Trace Messages (BTM)
- Information on current task via Ownership Trace
Messages (OTM)
- Supports onchip peripheral block tracing
- Supports timestamps generated by NEXUS clients as
well as TRACE32 generated timestamps
- Multicore tracing
- Comprehensive program profiling
- Target-OS aware profiling
- Code coverage
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
RH850 Trace
|
|
| |
- Program flow via Branch Trace Messages (BTM)
- Data Trace Messaging supported (DTM
- Supports onchip peripheral block tracing
- Multicore tracing
- Trace-based debugging
- Full support for trigger and filter features
- Up to 8 GByte trace memory
- 5 ns off-chip time stamp
- Comprehensive program profiling
- Target-OS aware profiling
- Code coverage
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
RH850 NEXUS High Speed Serial Trace Port
|
|
| |
|
|
|
- Aurora NEXUS high-speed serial trace
- Program flow via Branch Trace Messages (BTM)
- Data Trace Messaging supported (DTM)
- Supports onchip peripheral block tracing
- Multicore tracing
- Comprehensive program profiling
- Target-OS aware profiling
- Code coverage
|
|
|
| |
|
|
| |
|
|
|
|
|
