PCAN-Router Pro FD
|
|
|
|
|
|
Programmable 6-Channel
Router for CAN and CAN FD with I/O and Data
Logger
With six channels, the PCAN-Router Pro FD links the data traffic of
modern CAN FD and classic CAN buses. the router is equipped with an
analog input and four digital I/Os. The CAN messages can be recorded
on
the internal memory or on an inserted memory card and later read out
via
the USB connection.
The PCAN router FD comes with 2 digital I/Os, 1 analog input (0 - 33
V),
Internal memory: 16 GByte eMMC and SD card slot for additional memory.
supports recording of CAN data and error frames and USB connection for
accessing the data memory (e.g. recorded log data)
Optional on request: Ethernet interface via RJ-45 socket or
BroadR-Reach�
interface via D-Sub connector
The transfer of the firmware via CAN requires a PEAK CAN interface.
|
|
 |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
PCAN-Wireless
Gateway
|
|
|
|
|
|
The PCAN-Wireless
Gateway allows the connection of different CAN
busses over IP networks. CAN frames are wrapped in TCP or UDP message
packets and then forwarded via the IP network from one device to
another. The PCAN-Wireless Gateway provides one WLAN connection and
two
High-speed CAN interfaces. The module is supplied in a plastic case
with
two D-Sub connectors or a Tyco automotive connector.
The configuration of the device is done via a comfortable web
interface.
Besides providing a variety of status information, the website can
directly manage settings for the device itself, communication
interfaces, and message routing.
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
PCAN-Wireless
Gateway DR
|
|
|
|
|
|
The PCAN-Wireless
Gateway DR allows the connection of different CAN
busses over IP networks. CAN frames are wrapped in TCP or UDP message
packets and then forwarded via the IP network from one device to
another. The PCAN-Wireless Gateway DR provides one WLAN connection and
two High-speed CAN interfaces. With its DIN rail casing and the
support
of the extended temperature range, the module is suitable for use in
an
industrial environment.
The configuration of the device is done via a comfortable web
interface.
Besides providing a variety of status information, the website can
directly manage settings for the device itself, communication
interfaces, and message routing.
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|

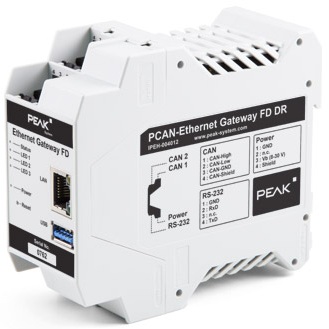

PCAN-Ethernet
Gateway DR
|
|
|
|
|
|
The
PCAN-Ethernet Gateway DR allows the connection of
different CAN busses over IP networks. CAN frames are wrapped in TCP
or UDP message packets and then forwarded via the IP network from one
device to another. The PCAN-Ethernet Gateway DR provides one LAN
connection and two High-speed CAN interfaces. With its DIN rail casing
and the support of the extended temperature range, the module is
suitable for use in an industrial environment.
The configuration of the device is done via a comfortable
web interface. Besides providing a variety of status information, the
website can directly manage settings for the device itself,
communication interfaces, and message routing.
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
Virtual
PCAN-Gateway
|
|
|
|
|
|
The Virtual
PCAN-Gateway software package provides access
for Windows computers to devices of the PCAN-Gateway product line over
IP-based networks. Various LAN and WLAN network adapters can be
used.
Analog to the bidirectional connection of two PCAN-Gateways, message
forwarding with so-called routes must be set up between the hardware
and
the software. At first, two routes have to be created on the
configuration website of the hardware, one for sending and another for
receiving.
Then, the appropriate counterparts of these routes must be
established within the configuration software.
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
PCAN-LIN
|
|
| |
|
|
|
| The PCAN-LIN module
enables CAN, LIN, and serial participants to communicate. The module
is
supplied in a plastic casing and includes firmware which enables data
to
be exchanged between the different bus systems. Various modes can be
set
up with the aid of configuration software. Then for instance the
module
acting as the LIN master can request data and route the incoming LIN
data to the CAN bus and/or the serial interface. Data can be routed
between CAN and LIN with an ID offset. |
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|

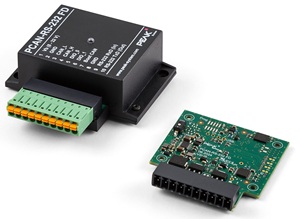

PCAN-RS-232
|
|
|
|
|
|
PCAN-RS-232
is a programmable module for the communication between
RS-232 and CAN. The conversion of data traffic is done via a NXP LPC21
series microcontroller.
Using the supplied library and the Yagarto GNU ARM toolchain (contains
the GNU Compiler Collection GCC for C and C++), custom firmware can be
created and then transferred to the module via CAN. This gives a whole
range of options for manipulation, evaluation, filtering, and routing
of
the data traffic.
On delivery the PCAN-RS-232 is provided with a demo firmware that
routes
from CAN to RS-232 and vice versa. It allows to configure the data
transfer as well as the hardware with serial control commands. The
corresponding source code is included as an example in the scope of
supply.
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
|
PCAN-Router
|
|
| |
|
|
|
The PCAN-Router is
a dual-channel CAN module whose NXP LPC21 series programmable
microcontroller provides the option of using the CAN messages on both
channels on a flexible basis. This gives a whole range of options for
manipulation, evaluation, filtering, and routing of CAN messages.
Using the supplied library and the Yagarto GNU ARM toolchain (contains
the GNU Compiler Collection GCC for C and C++), custom firmware can be
created and then transferred to the module via CAN. At delivery, the
PCAN-Router is equipped with a demo firmware that forwards CAN
messages
1:1 between both channels at 500 kbit/s. The corresponding source code
is included as example in the scope of supply.
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
PCAN-Router FD
|
|
|
|
|
|
The PCAN-Router FD
allows the connection to two CAN FD or CAN busses.
Based on a ARM Cortex M4F
microcontroller, the module‘s behavior and the data routing
between both
CAN FD channels is freely programmable. In particular, the module
allows
the conversion from CAN to CAN FD or vice versa. This makes it easy to
accomplish the integration of CAN FD applications into existing CAN
2.0
networks.
Using the programming library and the GNU compiler for C and C++, a
firmware is created and then transferred to the module via CAN. On
delivery, the PCAN-Router FD is provided with a demo firmware. The
corresponding source code is included as example in the scope of
supply.
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
PCAN-Router DR
|
|
|
|
|
|
The PCAN-Router DR has
two High-speed CAN channels. Their
bit rate is adjusted with a rotary switch on the device front. The
module forwards the message traffic bi-directionally 1:1 between both
connected CAN busses.
The ports of the device are isolated against each other and against
the
power supply with at least 500 V. Furthermore, CAN 1 has a separation
voltage of up to 5 kV conforming with IEC 60601-1. With its DIN rail
casing and the support of the extended temperature range, the module
is
suitable for use in an industrial environment.
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
PCAN-Router
Pro
|
|
|
|
|
|
| The
PCAN-Router Pro allows to join the data traffic from four
High-speed CAN busses. The behavior of the router is configured via
the
CAN bus with the provided Windows program PPCAN-Editor. As well as
pure
forwarding, the CAN data can be processed, manipulated, and for
example,
filtered in a number of different ways. There are a variety of
function
blocks and other settings available to the user for configuration
setup.
Furthermore, there is a virtual fifth CAN channel which is used for
recording all data traffic to a CompactFlash card. |
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
PCAN-GPRS
Link
|
|
|
|
|
|
PCAN-GPRS Link is a
module for recording and forwarding
vehicle data. There are two freely programmable microcontrollers
within
the unit which process internal vehicle data.
The PCAN-GPRS Link is provided as a development platform for telematic
applications. An API allows simple integration within a specific
application environment. The PCAN-GPRS Link supports the evaluation of
FMS and Bus FMS data (Fleet Management System). This produces
consumptionrelated vehicle data. The DTCO info interface also allows
the
connection and processing of a digital tacho with access to
information
such as driver identification and driver working time. The GPS module
can be used to determine location and output the direction of travel.
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
