PC CAN
Hardware
|
|
|
|
|
|
PC Interfaces
|
|
| |
|
|
|
PCAN-USB
|
|
|
|
|
|
The PCAN-USB adapter enables
simple connection to CAN networks. Its compact plastic casing makes it
suitable for mobile
applications.
The opto-decoupled version guarantees galvanic isolation of up to 500 Volts
between the PC and the CAN side.
The package is also supplied with the CAN monitor PCAN-View for Windows� and
the programming interface PCAN-Basic.
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|

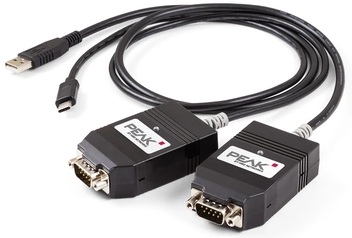

PCAN USB
FD
|
|
|
|
|
| |
The CAN FD adapter
PCAN-USB FD allows the connection of CAN FD and CAN networks to a
computer via USB. A galvanic isolation of up to 500 Volts decouples the
PC from the CAN bus. The simple handling and its compact plastic casing
make the adapter suitable for mobile applications.
The new CAN FD
standard (CAN with Flexible Data rate) is primarily characterized by
higher bandwidth for data transfer. The maximum of 64 data bytes per CAN
FD frame (instead of 8 so far) can be transmitted with bit rates up to
12 Mbit/s. CAN FD is downward-compatible to the CAN 2.0 A/B standard,
thus CAN FD nodes can be used in existing CAN networks. However, in this
case the CAN FD extensions are not applicable.
The monitor software PCAN-View
and the programming interface PCAN-Basic for the development of
applications with CAN connection are included in the scope of supply and
support the new standard CAN FD.
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-USB
Pro FD
|
|
|
|
|
| |
The PCAN-USB Pro FD
adapter enables the connection of CAN FD and LIN networks to a computer
via USB. Two field busses can be connected at the same time, up to four
with appropriate adapter cables (2 x CAN FD, 2 x LIN). Each CAN FD
channel is separately isolated against USB and LIN with a maximum of 500
Volts. Its robust aluminum casing makes the PCAN-USB Pro FD adapter
suitable for mobile applications.
The new CAN FD standard (CAN with Flexible Data
rate) is primarily characterized by higher bandwidth for data transfer.
The maximum of 64 data bytes per CAN FD frame (instead of 8 so far) can
be transmitted with bit rates up to 12 Mbit/s. CAN FD is
downward-compatible to the CAN 2.0 A/B standard, thus CAN FD nodes can
be used in existing CAN networks. However, in this case the CAN FD
extensions are not applicable.
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-USB Pro
|
|
|
|
|
| |
The PCAN-USB Pro adapter enables
simple connection of a PC to CAN and LIN networks. Two field buses can be
connected at the same time, with up to four connections available using
appropriate adapter cables (2 x CAN, 2 x LIN). Its robust aluminum casing makes
the PCAN-USB Pro adapter suitable for mobile applications.
The monitor applications PCAN-View and PLIN-View Pro as well as the PCAN-Basic
and PLIN programming interfaces are also included in the scope of supply.
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-USB X6
|
|
|
|
|
| |
The PCAN-USB X6 is a
CAN FD adapter for the USB port which allows the connection of up to 6
CAN FD or CAN busses. The device is therefore best suited for working
with multiple CAN networks like the use in test benches with
hardware-in-the-loop (HIL) simulations for motor vehicles or in the
product line testing of CAN-based products.
The PCAN-USB X6 is installed in an aluminum profile casing and is
shipped in versions with D-Sub connectors or M12 circular connectors.
Especially the M12 version is suitable for use in harsh environments. In
addition, a galvanic isolation of up to 300 Volts between the PC and the
CAN side is guaranteed for the decoupled versions.
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-USB Hub
|
|
|
|
|
| |
The PCAN-USB Hub
provides multiple hardware interfaces through a USB connection. It
offers the user one CAN, two RS-232, and two further USB interfaces. Its
robust aluminum casing makes the PCAN-USB Hub suitable for mobile
applications.
The package is also supplied with the CAN monitor PCAN-View for Windows�
and the programming interface PCAN-Basic.
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-PCI
|
|
|
|
|
| |
The PCAN-PCI
card enables the connection of a PC with PCI slots to CAN networks.
The card is available as a single or dual-channel version. The opto-decoupled
versions also guarantee galvanic isolation of up to 500 Volts between
the PC and the CAN sides.
The package is also supplied with the CAN monitor PCAN-View for Windows�
and the programming interface PCAN-Basic.
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PLIN-USB
|
|
|
|
|
| |
The PLIN-USB
enables the connection of a Windows� computer to a LIN network via USB.
The adapter supports the LIN protocol according to the standard ISO
17987 and complies with all LIN specifications up to version 2.2. The
interface can be operated as a master or a slave.
The monitor software PLIN-View Pro and the PLIN programming interface
for the development of applications with LIN connection are included in
the scope of supply. |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN
PCI Express
|
|
|
|
|
|
The PCAN-PCI Express
card enables the connection of a PC with PCI Express slots to CAN
networks. There is galvanic isolation of up to 500 Volts between the
computer and CAN sides. There are versions with one, two and four
channels.
The package is also supplied with the
CAN monitor PCAN-View for Windows� and the programming interface
PCAN-Basic.
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN PCI
Express FD
|
|
|
|
|
|
The plug-in card
PCAN-PCI Express FD allows the connection of a PC with PCI Express
slots
to CAN FD and CAN networks. There is galvanic isolation of up to 500
Volts between the computer and CAN sides. The card is available as a
single, dual, or four-channel version.
The new CAN FD standard (CAN with Flexible Data rate) is primarily
characterized
by higher bandwidth for data transfer. The maximum of 64 data bytes
per
CAN FD frame (instead of 8 so far) can be transmitted with bit rates
up
to 12 Mbit/s. CAN FD is downward-compatible to the CAN 2.0 A/B
standard,
thus CAN FD nodes can be used in existing CAN networks. However, in
this
case the CAN FD extensions are not applicable.
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN
cPCI
|
|
|
|
|
|
The PCAN-cPCI
card enables the connection of an industrial computer system with
CompactPCI to CAN networks. There is galvanic isolation of up to 500
Volts between the computer and CAN sides. The card is available as a
dual or four-channel version.
The package is also supplied with the CAN monitor PCAN-View for
Windows� and the
programming interface PCAN-Basic.
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN miniPCI
|
|
|
|
|
|
The PCAN-miniPCI card
enables the connection of embedded PCs and laptops with Mini PCI slots
to CAN networks.
The card is available as a single or dual-channel
version. The opto-decoupled versions also guarantee galvanic isolation
of up to 300 Volts between the PC and the CAN sides.
The package is also supplied with the CAN monitor PCAN-View for
Windows and the programming interface PCAN-Basic.
|
|
 |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-miniPCIe
|
|
|
|
|
|
The PCAN-miniPCIe card
enables the connection of embedded PCs and laptops with PCI Express
Mini
slots to CAN networks. There is galvanic isolation of up to 300 Volts
between the computer and CAN sides. The card is available as a single
or
dual-channel version.
The package is also supplied with the CAN monitor PCAN-View for
Windows� and the programming interface PCAN-Basic.
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-miniPCIe
FD
|
|
|
|
|
|
The PCAN-miniPCIe FD
is a CAN interface for the PCI Express Mini slot. With its
space-saving
format, the plug-in card is a suitable solution for connecting
embedded
systems to up to four CAN FD and CAN networks. There is galvanic
isolation of up to 300 Volts between the computer and CAN sides. The
card is available as a single, dual, or four-channel version.
The new CAN FD standard (CAN with Flexible Data
rate) is primarily characterized by higher bandwidth for data
transfer.
The maximum of 64 data bytes per CAN FD frame (instead of 8 so far)
can
be transmitted with bit rates up to 12 Mbit/s. CAN FD is
downward-compatible to the CAN 2.0 A/B standard, thus CAN FD nodes can
be used in existing CAN networks. However, in this case the CAN FD
extensions are not applicable.
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
PCAN-M.2
|
|
|
|
|
| |
| The PCAN-M.2 allows
the connection of CAN and CAN FD networks via the M.2 interface (PCIe)
of modern computer boards. With its small format, the plug-in card is
ideal for embedded PCs, single-board computers (SBC), and compact
embedded applications. There is a galvanic isolation between the
computer and the CAN side up to 300 Volts. The card is available as
single and dual-channel version. |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-PC/104
|
|
|
|
|
|
The PCAN-PC/104 card
enables the connection of one or two CAN networks to a PC/104 system.
Multiple PCAN-PC/104 cards can easily be operated using interrupt
sharing.
The card is available as a single or
dual-channel version.The opto-decoupled versions also guarantee
galvanic
isolation of up to 500 Volts between the PC and the CAN sides.
The package is also supplied with the CAN
monitor PCAN-View for Windows� and the programming interface
PCAN-Basic.
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-PC/104-Plus
|
|
|
|
|
|
The PCAN-PC/104-Plus
card enables the connection of one or two CAN networks to a
PC/104-Plus
system. Up to four cards can be operated, with each piggy-backing off
the next. The CAN bus is connected using a 9-pin D-sub plug on the
slot
bracket supplied.
The card is available as a
single or dual-channel version. The opto-decoupled versions also
guarantee galvanic isolation of up to 500 Volts between the PC and the
CAN sides.
The package is also supplied with the CAN
monitor PCAN-View for Windows� and the programming interface
PCAN-Basic.
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-PC/104-Plus
Quad
|
|
|
|
|
| |
The PCAN-PC/104-Plus
Quad card enables the connection of four CAN networks to a PC/104-Plus
system. Up to four cards can be operated, with each piggy-backing off
the next. The CAN bus is connected using a 9-pin D-Sub plug on the slot
brackets supplied. There is galvanic isolation of up to 500 Volts
between the computer and CAN sides.
The package is also supplied with the CAN monitor PCAN-View for Windows� and the
programming interface PCAN-Basic.
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-PCI/104-Express
|
|
|
|
|
| |
The PCAN-PCI/104-Express
card enables the connection of one, two, or four CAN busses to a PCI/104-Express
system. Up to four cards can be stacked together. The CAN bus is
connected using a 9-pin D-Sub plug on the slot brackets supplied. There
is galvanic isolation of up to 500 Volts between the computer and CAN
sides. The card is available as a single, dual, or four-channel version.
The package is also supplied with the CAN monitor
PCAN-View for Windows� and the programming interface PCAN-Basic.
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-PCI/104-Express
FD
|
|
|
|
|
| |
| The PCAN-PCI/104-Express
FD allows the connection of PCI/104-Express systems to CAN and CAN FD
busses. The PCI/104-Express specification establishes PCI Express for
the PC/104 form factor wherewith up to four cards can be stacked. Based
on this, standardized modular embedded systems such as industrial PCs
can be realized. The CAN bus is connected via 9-pin D-Sub connectors to
the supplied slot brackets. There is a galvanic isolation between the
computer and the CAN side up to 500 Volts. The card is available as a
single, dual, or four-channel version. |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-ExpressCard
34
|
|
|
|
|
| |
The CAN adapter PCAN-ExpressCard
34 allows the connection of a CAN bus
to embedded PCs and laptops with ExpressCard slots. A galvanic isolation
of up to 300 Volts decouples the PC from the CAN bus.
The package is also supplied with the CAN monitor
PCAN-View for Windows� and the programming interface PCAN-Basic.
|
|
 |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-ExpressCard
|
|
|
|
|
| |
The CAN adapter PCAN-ExpressCard
34 allows the connection of a CAN bus
to embedded PCs and laptops with ExpressCard slots. A galvanic isolation
of up to 300 Volts decouples the PC from the CAN bus.
The card is available in single and dual-channel
versions. There are also galvanically separated versions which guarantee
galvanic separation up to a maximum of 300 Volts between the PC and CAN
sides.
The package is also supplied with the CAN
monitor PCAN-View for Windows� and the programming interface PCAN-Basic.
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-PC Card
|
|
|
|
|
| |
The card allows the
connection of a CAN bus to a laptop or to a
desktop PC with a PC Card slot.
The card is available as a single or dual-channel version. There are also
galvanically separated versions which guarantee galvanic separation up
to a maximum of 100 Volts between the PC and CAN sides.
The package is also supplied with the CAN monitor
PCAN-View for Windows� and the programming interface PCAN-Basic.
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
PCAN-ISA
|
|
|
|
|
|
The PCAN-ISA card
enables simple, cost-effective connection of computer systems with ISA
slots to CAN networks.
Multiple PCAN-ISA cards can easily be operated using interrupt
sharing.
The card is available as a single or dual-channel version. The
opto-decoupled versions also guarantee galvanic isolation of up to 500
Volts between the PC and the CAN
sides.
The package is also supplied with the CAN monitor PCAN-View for
Windows��and the programming interface PCAN-Basic.
|
|
 |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
PCAN-Dongle
|
|
|
|
|
|
This parallel
connection to CAN converter is a sensible alternative to using a
PCAN-USB adapter for connecting to a
CAN network, especially for older PCs and laptops. Depending on the
parallel interface present, it can be operated in "Multiplex" or
"Enhanced Parallel Port" mode.
Power is supplied to the PCAN-Dongle through a special adapter
connected to the PC's keyboard output.
The opto-decoupled version also guarantees galvanic isolation of up to
500 Volts between the PC and the CAN sides.
The package is also supplied with the CAN monitor PCAN-View for
Windows��and the programming interface PCAN-Basic.
|
|
 |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
